Description

The GM® MDI 2 is the next generation service tool for technicians. The MDI 2 manages the transfer of data between a vehicle's onboard ECU network and a service technician’s host PC. The GM® MDI 2 supports both diagnostic applications (GDS 2, Data Bus Diagnostic Tool, Tech2Win) and ECU Pass-Thru programming applications (TIS2Web-SPS).

The GM® MDI 2 connects to the vehicle using a DLC cable. Connection between the MDI 2 and the technician PC can be accomplished directly via a high speed USB connection or a new Point-to-Point wireless WiFi interface, or via the dealership network using an Ethernet or wireless WiFi connection.

Features & Specifications:

· Extended Vehicle Communications Capability

· Support for new CAN FD and DoIP communication protocols

· Faster and more convenient PC to MDI 2 interface

· Faster USB interface (USB 2.0)

· Point-to-Point Wireless Wifi – simple plug & play; does not require a

  network access point New hardware expansion capabilities

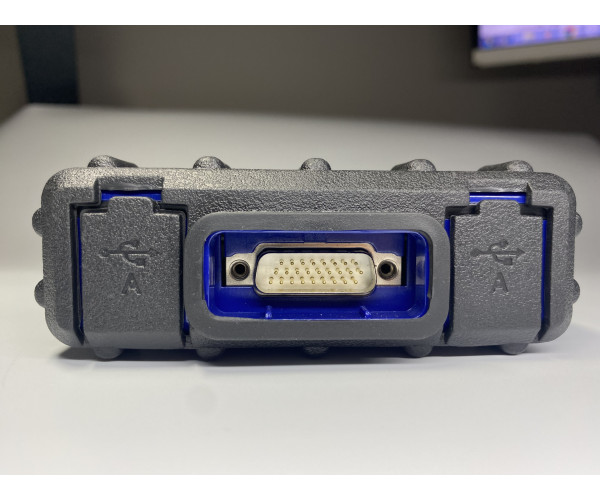

· Two USB host ports allow for future peripheral device options

· SD memory card slot for future software applications

· Improved enclosure design

· Enhanced protection from exposure to moisture

· Reinforced USB connector and connector housing Other new features

· Improved protection from ground off-set conditions

· Extended temperature range - Industrial grade components designed

  for extended temperature operation; Software controlled power

  down if over temperatures condition detected

· Operation during engine crank – Capacitors maintain power during

  crank; No batteries to replace

Kit Contents (P/N: EL-52100):

· MDI 2 Interface

· DLC Cable

· USB Cable

· Ethernet Cable

· Point to Point WiFi Devices
